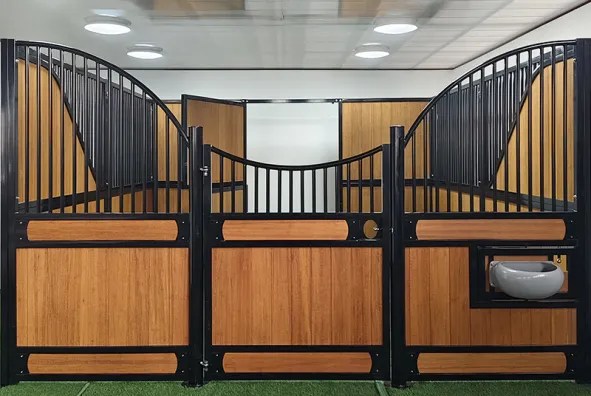

Modular Barn Horse Stalls with Hinged Doors – Wave Design

Modular Barn Horse Stalls with Hinged Doors – Wave Design

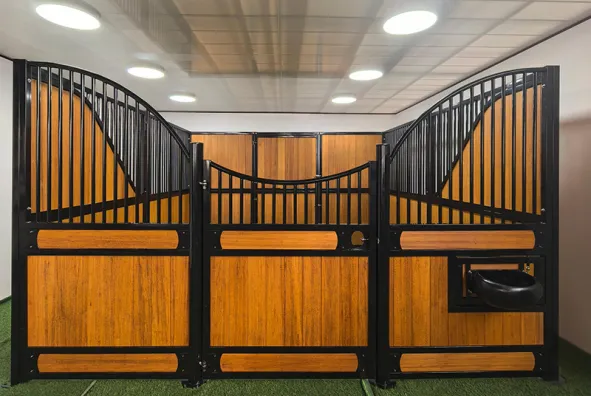

The Wave Hinged Stall Front brings a modern and dynamic look to your barn with its flowing curved top design. This wave-shaped style not only enhances the overall elegance of the stable but also provides excellent ventilation and a more open, social environment for horses. Its unique silhouette stands out as both stylish and practical, making it a favorite among equestrian barn owners worldwide.

Inquire Now Next Product

The lower door section offers flexible infill options to suit different needs. Choose solid bamboo boards for a warm, natural appearance and extra privacy, louvered bamboo panels for improved airflow while maintaining strength, or full steel tubes for maximum durability and an airy, open look. This adaptability makes the Wave Hinged Stall ideal for balancing security, ventilation, and visibility in various barn designs.

Every detail is built with horse safety and longevity in mind. Heavy-duty hinges, reinforced latches, and rounded edges prevent injuries and withstand daily use, while the frame can be finished in hot-dip galvanization for long-lasting rust resistance or powder coating in custom colors for a refined appearance. Decorative post caps, feeding systems, and tie rings can also be added to create a stall front that reflects both functionality and personal style.

With its combination of strength, versatility, and graceful design, the Wave Hinged Horse Stall Front is the perfect choice for modern modular barns that value both beauty and practicality.

Customized Styles

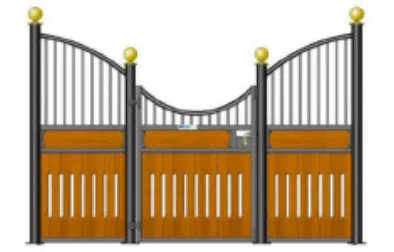

VSN - C01

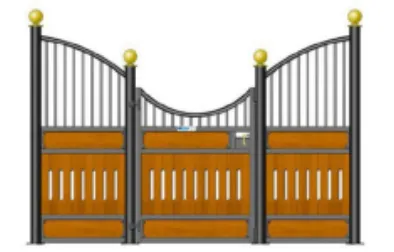

VSN - C03

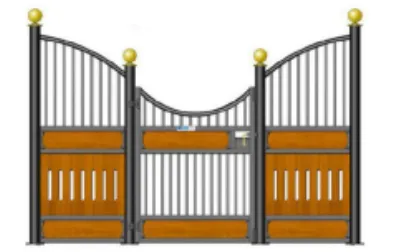

VSN - C04

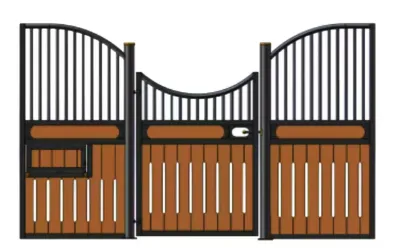

VSN - C05

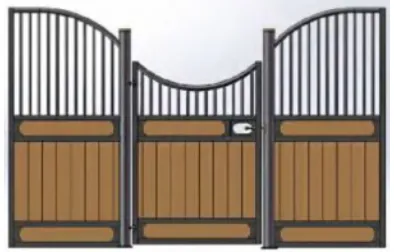

VSN - C06

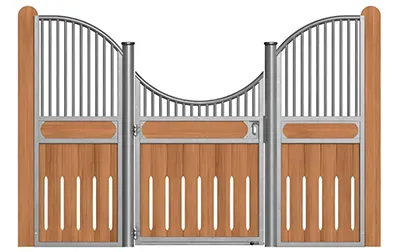

VSN - C07

Product Parameters

Front Type	Hinged Door
Popular Size	Length: 10ft, 12ft, 14ft (3.0m, 3.5m, 3.6m, 4.0m, 4.2 m) Height: 7.2ft (2.2m), 7.87ft(2.4m) It can be customized
Surface Treatment	Polyester powder coat finish on Pre - Galvanized Steel Frames or Hot dip galvanized; Powder coated (color is selected)
Infill material	Bamboo: thickness 20mm / 28mm / 32mm / 38mm (ventilation opening on bamboo can be custom - made) High Density Polyethylene (HDPE): thickness 6mm / 8mm / 10mm / 15mm Pine: thickness 25mm / 30mm / 38mm Wood-Plastic Composite (WPC): thickness 23mm Plywood: thickness 15mm
Profile	50x50mm RHS
Accessories	(1) Swivel feeder; (2) Water bowl; (3) Hay Rack; (4) Corner post; (5) Brass caps; (6) Decorative Ball; (7) Stainless steel latch; (8) Saddle Rack
Roof	Optional

Packaging

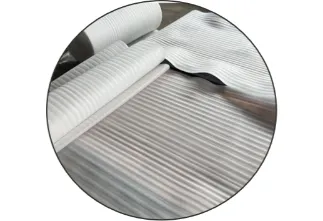

Pearl Cotton Protection for Panels

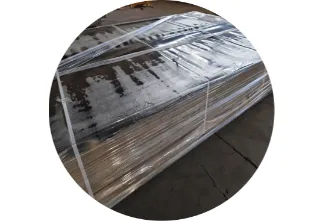

Fully Assembled Package

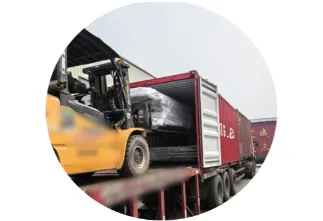

Forklift Loading Process

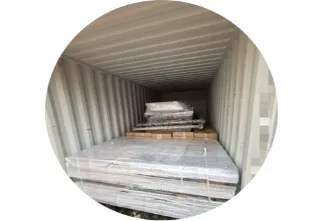

Secure Container Stowage

Accessories

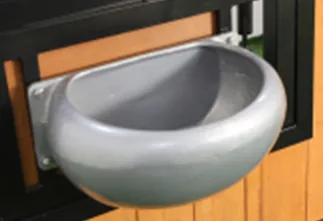

360° Swivel Feeder (alu.)

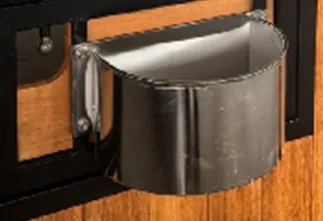

360° Swivel Feeder (SS)

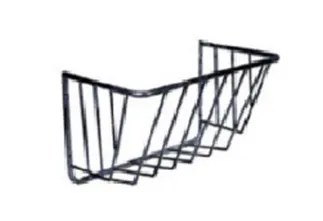

Hay Rack

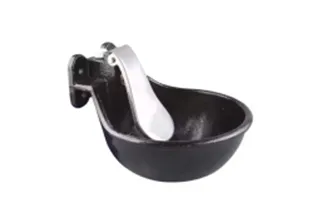

Automatic Water Bowl (Cast Iron)

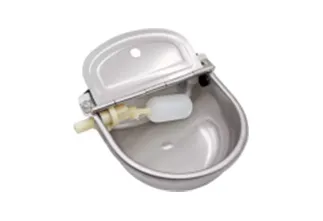

(SS) Water Bowl

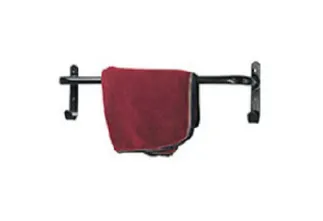

Aluminum Blanket Rack

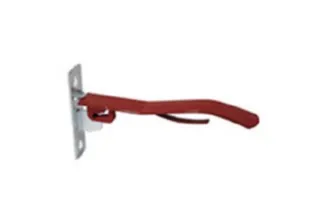

Foldable Saddle Rack

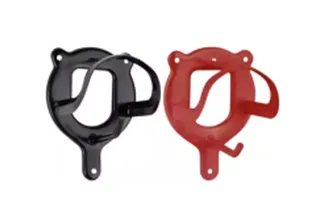

Horse Bridle Rack

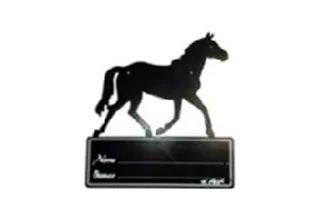

Nameplate

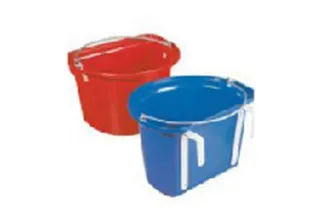

Horse Feeder Bucket

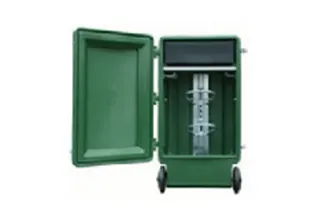

Saddle Box

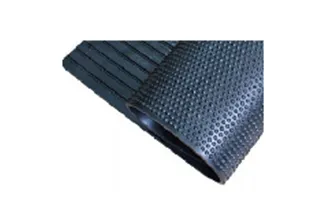

Rubber Mat

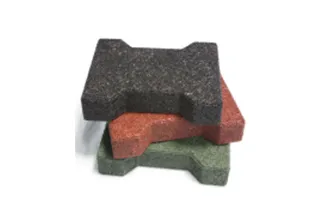

Rubber Pavers

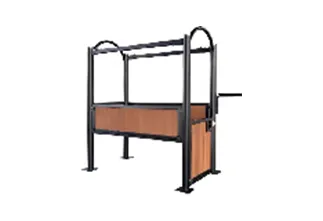

Horse Stock

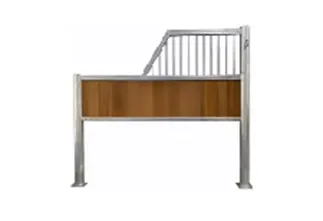

Horse Wash Panel

Saddle Box

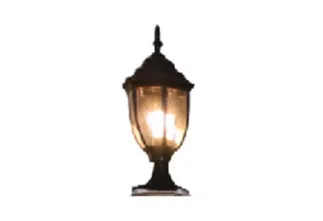

Wall Lamp

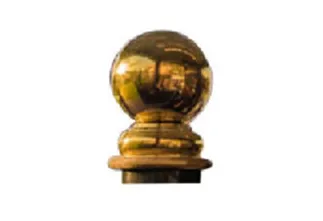

Decorative Gold Ball

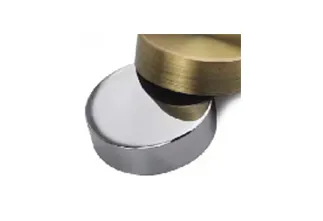

Flat Top Cap

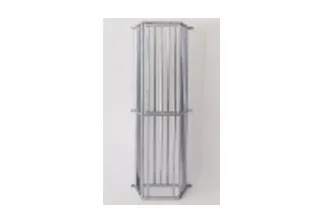

Corner Hay Rack

Close-Up Details

Smooth Finish

Matte spraying process for premium tactile quality and visual elegance.

360° Swivel Feeder

360-degree rotational design with aluminum & stainless steel options.

Stainless Steel Hinges

Heavy-duty SS hinges for corrosion resistance and seamless operation.

Stainless Steel Latch

Rust-proof SS latch for secure stall door closure.

Ventilated Bamboo Panel

Eco-friendly, high-durability bamboo panel crafted from sustainable bamboo-based fiber composite.

Horse Stall Partitions

Our horse stall partitions are designed for durability, safety, and flexibility. With a range of modern styles—including fixed and swinging panels—they ensure comfort, privacy, and separation for each horse.

Easy to install and compatible with various barn structures, our partitions can also be customized to suit your unique layout and needs.

Designed to blend functionality with style, they elevate the overall look and feel of your stable.
