Project overview
Project positioning:
Family-Style Horse Farm / Educational & Experiential Small-Scale Equestrian Club
Use target:
Daily riding, primary training, small event reception
Number of horses:
8 horses in total (6 riding horses and 2 teaching/spare horses)
Stable quantity planning:
10 standard stables in total (including 2 spare/isolated stables)
Installation site information
Preset site size: 24 m × 12 m = 288 m² (including corridor)
Foundation recommendation: gravel cushion layer + C25 concrete floor, thickness ≥ 100 mm, with drainage slope (≥1%)
Water and electricity interface: reserve one DN25 water interface + one 220V socket for every 2 stables
Drainage layout: adopt rear-row trench drainage, PVC trench + grid cover
Stable layout plan
Single room size: 3 m (Length) × 3.5 m (Width) × 2.3 m (Height)
Structural form: front-opening stable, single-side corridor layout
Distribution design:

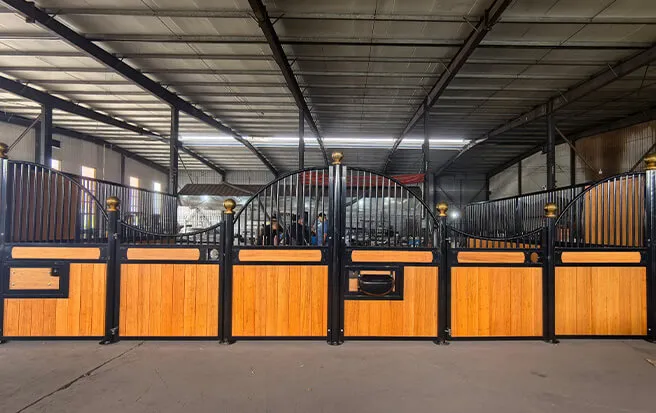

- Main stable layout: 10 stables are arranged in one line, facing south
- Corridor width: 3.2 m, which can accommodate two horses to pass through
- Spare stables: 1 at each end, which can be temporarily isolated or converted into storage rooms

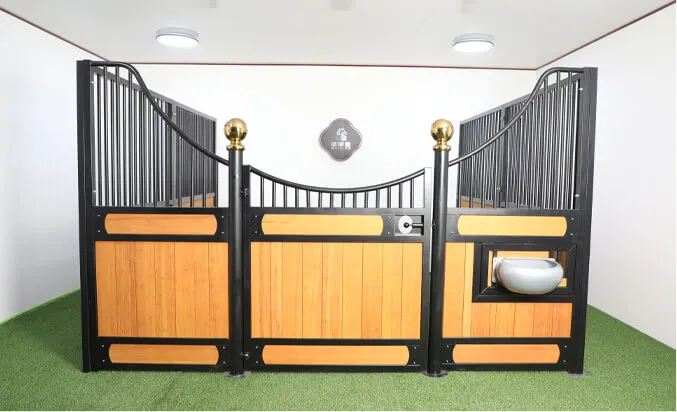

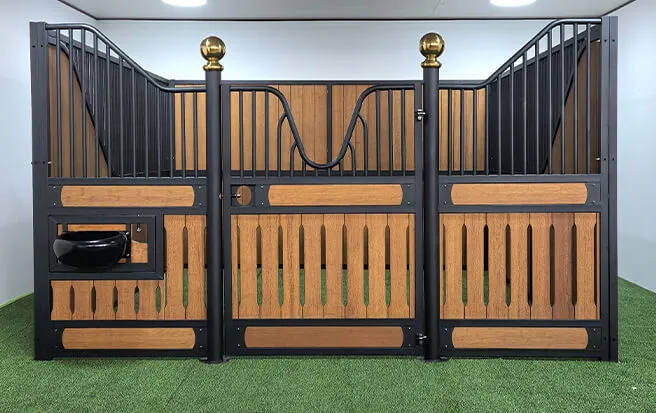

Characteristics of bamboo board stables
• Environmentally friendly materials: high-density bamboo boards are used, which are moisture-proof, insect-proof and flame-retardant, meeting environmental protection requirements
• Durable structure: The frame adopts hot-dip galvanized square tubes, and the corrosion resistance life is ≥ 20 years
• Safe Finishing: The surface is delicate, all corners are rounded to prevent scratches on horses
• Easy to clean: The wall is a detachable design of the whole board, which supports high-pressure water washing
• Strong thermal insulation: The bamboo board has low thermal conductivity, keeping the interior cool and comfortable in summer
• Flexible customization: optional automatic water dispenser, top ventilation window, sliding window or inner opening door and other functional parts
Brief installation and construction
Estimated construction period: 4-5 days (including equipment transportation, assembly, cleaning)
Installation steps:
- Ground leveling + line positioning (0.5 day)
- Modular stable assembly (2 days)
- Supporting facilities connection (electricity, water, ventilation window) (1 day)
- Detail adjustment and cleaning acceptance (0.5-1 day)
Construction staff configuration: 3-4 people can complete the installation
Transportation plan: Can be transported by container or flatbed truck, with a volume compression rate of about 60%
Summary of advantages
This design plan takes "compact, efficient, safe and sustainable" as the core, and gives full play to the lightweight, environmental protection and flexibility of bamboo stables, which is particularly suitable for:
- Private horse owners build exclusive stables
- Rural riding clubs expand stables
- Small training center teaching stables and other scenarios
Not only improve the conditions for horse breeding, but also facilitate later expansion and maintenance, it is an ideal choice for both cost and quality.
